Erlang learning (10) - Data Types (2)

Preface

    After learning the basic knowledge and examples of Erlang according to Getting Started in the manual in blog Erlang learning (3) - Data Types (1), let’s learn other knowledge points in various aspects.
    This study mainly supplements the data structure and the conversion between the data types.

Text

Number

There are 4 kinds of Number type in Erlang:

• integer:
• float:
• $char (Erlang-specific):

  ASCII value or unicode code-point of the character char.

• base#value (Erlang-specific):

  Integer with the base base, that must be an integer in the range 2..36.

Example

1
2
3
4
5
6
7
8
9
10
11
12
1> 30.
30
2> 3.2e2.
320.0
3> $a.
97
4> $\r.
13
5> 2#110.
6
6> 16#ff.
255

Atom

Atom is learned in last study about data type of Erlang, but it needs some additional information.
An atom is a literal, a constant with name.
An atom is to be enclosed in single quotes (‘) if it does not begin with a lower-case letter or if it contains other characters than alphanumeric characters, underscore (_), or @.
Learning notes: I already know atom is a literal which begin with a lower-case letter. But this time I know, it can contains _ or @.
And if atom contains other conditions, need enclosed in single quotes.
Besides, double quotes are used to enclose String, which is not a data type of Erlang but can be used.

Example

1
2
3
4
5
6
7> office_addr.
office_addr
8> 'office addr'.
'office addr'
9> 'Monday'.
'Monday'

Pid

A process identifier, pid, identifies a process.
The following BIFs, which are used to create processes, return values of this data type:

• spawn/1,2,3,4
• spawn_link/1,2,3,4
• spawn_opt/4 Learning notes: I used BIF spawn in earlier study blogs, but I did not realize pid is a data type of Erlang, I thought the return of these BIFs are kind of String.

1
2
3
4
5
6
7
8
9
-module(tut18).
-export([loop/0]).

loop() ->
    receive
        who_are_you ->
            io:format("I am ~p~n", [self()]),
            loop()
    end.

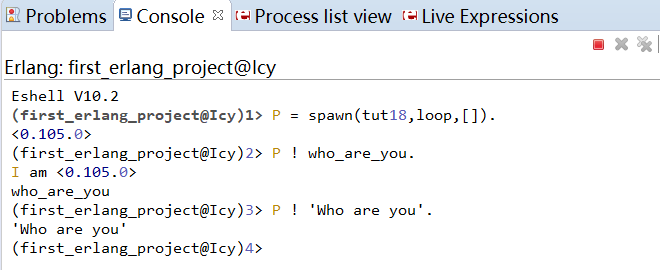

Test

Tuple

A tuple is a compound data type with a fixed number of terms.
Each term Term in the tuple is called an element. The number of elements is said to be the size of the tuple.
Learning notes: I learn Tuple already, but this time I found there are difference of Tuple between Erlang and Python.
Tuple elements in Erlang can be modified, but the number of elements is fixed.(Test proves this understanding is wrong.)
Tuple elements in Python cannot be modified, of course the number of elements is fixed too.
The declaration of erlang:setelement/3:
setelement(Index, Tuple1, Value) -> Tuple2
It return the copy of Tuple1, not Tuple1 itself. So I think it’s more like use Tuple1 to generate Tuple2, but Tuple1 can not be modified.

1
2
tup1 = (12, 34.56)
tup1[0] = 100  # Illegal operation in Python.

1
2
3
4
5
6
7
8
9
10
2> P = { icy, 18, {mar, 28}}.
{icy,18,{mar,28}}
3> setelement(2,P,19).
{icy,19,{mar,28}}
4> element(2,P).    % element is not modified by setelement/3.
18
5> P2 = setelement(2,P,19).    % usage of setelement/3
{icy,19,{mar,28}}
6> element(2,P2).
19

String

String is normal data type in Java and Python. But string is not a data type in Erlang.
In Erlang, string is a shorthand for list.
Two adjacent string literals are concatenated into one. This is done in the compilation, thus, does not incur any runtime overhead.

1
2
3
4
8> list_to_binary("hello").
<<"hello">>
9> "hello""world".
"helloworld"

Boolean

There is no Boolean data type in Erlang. Instead the atoms true and false are used to denote Boolean values.

1
2
3
4
5
6
10> true or false.
true
11> true and false.
false
12> 1>2.
false

Type Conversion

There are a number of BIFs for type conversions:
I consider list as string in these BIFs.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
13> atom_to_list(erlang).
"erlang"
14> list_to_atom("python").
python
15> binary_to_list(<<"Java">>).
"Java"
16> binary_to_list(<<104,101,108,108,111>>).
"hello"
17> list_to_binary("hello").
<<"hello">>
18> float_to_list(1.0).
"1.00000000000000000000e+00"
19> list_to_float("1.0e+00").
1.0
20> integer_to_list(100).
"100"
21> list_to_integer("99").
99
22> tuple_to_list({a,b,c}).
[a,b,c]
23> list_to_tuple([1,2,3]).
{1,2,3}
24> integer_to_binary(88).
<<"88">>
26> binary_to_integer(<<"104">>).
104

Summary

     From these simple examples, we practise some data types and type conversion of Erlang.
     During study, I found some misunderstanding of description in manual, the better way is coding and running examples.

Reference

http://www.erlang.org
http://erlang.org/doc/reference_manual/data_types.html
